| Specification | Detail / Range |
|---|---|
| Model Types | V2801RD, V2801SE, V2802DAC, V2801SG, etc. |
| Network Mode | Dual Mode (EPON & GPON) |
| Optical Interface | 1 × PON Port (SC/UPC) |
| TX Power | 0 to +4 dBm typical |
| RX Sensitivity | –27 dBm typical |
| Max Distance | 20 km fiber reach |
| Ethernet Ports | 1 × GE (Gigabit Ethernet) or 2 × GE (model dependent) |
| Indicators | SYS, PON, LINK, LAN, LOS |
| Temperature Range | Operating: –10 °C to +55 °C; Storage: –40 °C to +70 °C |
| Power Supply | 12 V DC (often 0.5 A) |
| Power Consumption | Up to ~4 W (for 1GE version) |

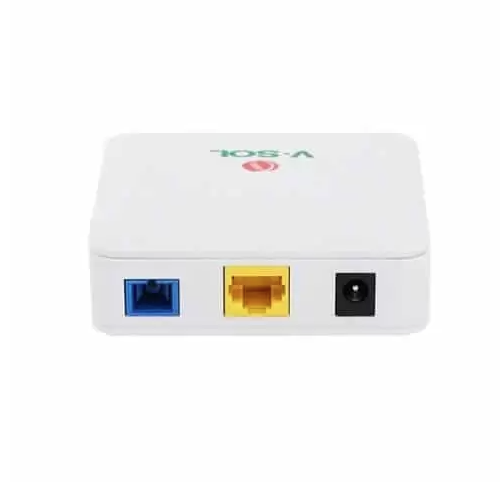

V-SOL EPON/GPON ONU – High-Performance FTTH Optical Network Unit
Deliver ultra-fast fiber broadband to your home or office with the V-SOL EPON/GPON ONU (Optical Network Unit). Whether your ISP uses EPON or GPON, V-SOL ONUs support dual mode, robust security features, and advanced networking capabilities. Available at Adiba Computers and Technology, the trusted source for networking solutions in Bangladesh.
Key Features & Benefits
-
Dual Mode EPON / GPON Support: Automatically detect and register to either EPON or GPON OLTs.
-
Gigabit WAN / LAN Ports: High-speed Ethernet interface (1GE) for seamless connection.
-
Built-in Firewall & Security: Support ACL, MAC/URL filtering, DDOS protection.
-
Powerful Optical Interface: 1310 nm TX / 1490 nm RX wavelengths; 20 km reach typical for subscriber links.
-
Wide Operating Conditions: Operates from –10 °C to +55 °C, storage from –40 °C to +70 °C.
-
Low Power Consumption: ≤ 4 W (in certain 1GE models)
-
Advanced QoS & VLAN Features: Support multiple queues, VLAN tagging, rate limiting, etc.
-
Management & Protocols: OMCI, OAM, Web UI, TR-069, Telnet, CLI support.
Why Buy V-SOL ONU from Adiba Computers?
-
Genuine & Dual-Mode ONU: EPON + GPON compatibility
-
Best Price in Bangladesh
-
Reliable After-Sales Support
-
Fast Delivery Across Bangladesh
-
Tailored for ISP / Fiber Deployments
